Here you can set Simulation related preferences.
 click:  > Simulation
|

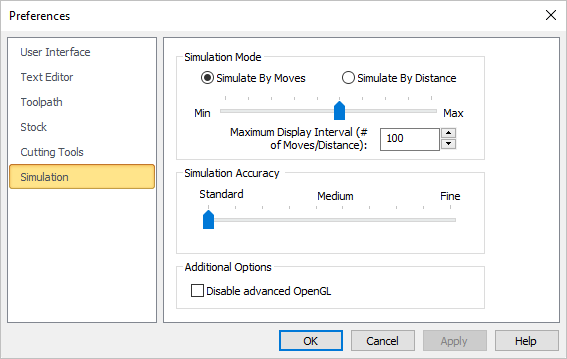

 Preferences > Simulation |
There are two simulation modes.
•Simulate by Moves
One pick of the Step icon on the Simulate tab moves the Cutting Tool one complete move (i.,e., start to end). See Maximum Display Interval below. This option is the same as checking the Simulate By Moves box on the Simulate tab. •Simulate by Distance
One pick of the Step icon on the Simulate tab moves the Cutting Tool a specified distance. See Maximum Display Interval below. This option is the same as un-checking the Simulate By Moves box on the Simulate tab. •Maximum Display Interval
You can control the speed of the simulation using the slider bar and the Maximum Display Interval. When using Simulate by distance mode, the speed is determined as # of Motions / Distance. |
Use this slider to adjust the simulation display accuracy.
|
Disable Advanced OpenGL
Check this box only if you have an older graphics card adapter that does not support advanced OpenGL (i.e., OpenGL 2). Some older cards may only support OpenGL 1 for example. If you experience graphics instability checking this box may help resolve the issue.
|
