User Interface

The VisualCAM MILL module adheres to the Windows standard for user interface design and integrated into the VisualCAD screen seamlessly.



tog_minusMILL Module Displayed

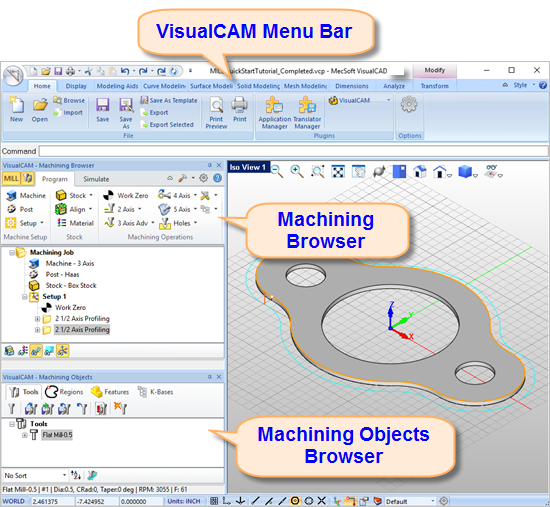

A screen shot of the VisualCAM MILL module running inside of VisualCAD is shown below:

The MILL module running inside of VisualCAD

The MILL module running inside of VisualCAD
tog_minusThe VisualCAM MILL Interface

There are 3 main interface objects created when MILL module is loaded.

1.VisualCAM menu bar entry under VisualCAD menu bar

2.Machining Browser (Mops) window

3.Machining Objects (Mobs)  Browser window
