Toolpath Preferences

<< Click to Display Table of Contents >>

Navigation:  G-CODE EDITOR Modile > User Interface > Preferences >

Toolpath Preferences

Here you can set Toolpath related preferences including colors, display, format and feedrate.



tog_minusTo Access this Command:

Navigate to: click: Set CAM System Preferences > Toolpath

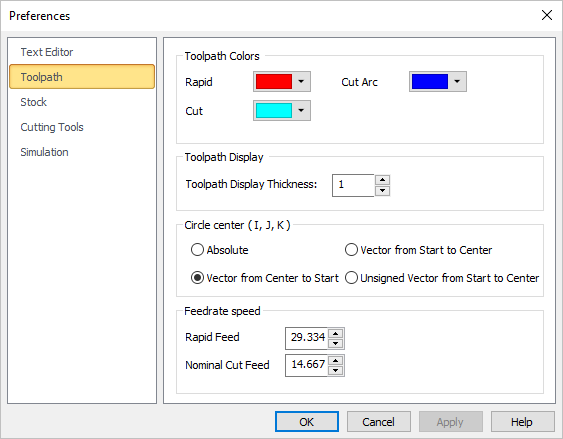

tog_minusPreferences > Toolpath
Preferences > Toolpath

Preferences > Toolpath
tog_minusToolpath Colors

You can specify the default colors to graphically display Rapid, Linear and Arc moves.  Use the color selector available for each.

Toolpath Display Color Preferences

Toolpath Display Color Preferences
tog_minusToolpath Display

Here you can set the line thickness for the display of all toolpaths.

Toolpath Display = 1

Toolpath Display = 1
Toolpath Display = 2

Toolpath Display = 2
tog_minusCircle Center (I,J,K)

I,J,K refers to the center point location for arc motions.  In this section you can define how arc motions are formatted in the output G-Code file.  Select from the following options:

•Absolute

•Vector from Center to Start

•Vector from Start to Center

•Unsigned Vector from Start to Center
tog_minusFeedrate Speed

Here you can specify feedrate values for the G-Code file.  Select from the following:

•Rapid Feed

•Nominal Cut Feed
