Text Editor Preferences

<< Click to Display Table of Contents >>

Navigation:  G-CODE EDITOR Modile > User Interface > Preferences >

Text Editor Preferences

Here you can set preferences related to the g-code text editor including colors and associated programs and folders.



tog_minusTo Access this Command:

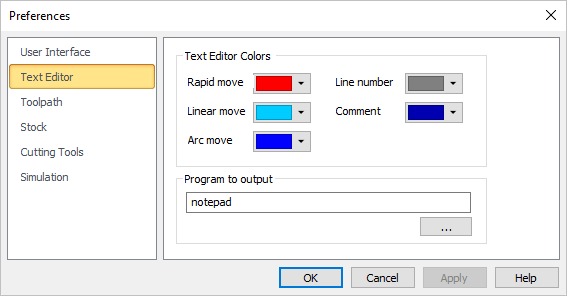

Navigate to: click: Set CAM System Preferences > Text Editor
tog_minusPreferences > Text Editor
Preferences > Text Editor

Preferences > Text Editor
tog_minusText Editor Colors

You can specify the default colors to display for Rapid, Linear and Arc moves as well as for Line Numbers and Comments within the G-Code Editor.  Use the color selector available for each.

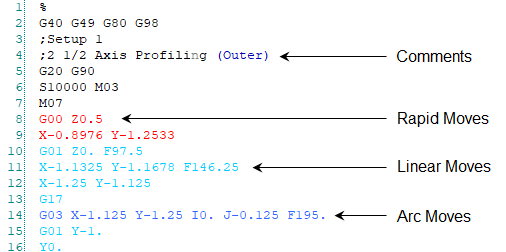

Text Editor Color Preferences

Text Editor Color Preferences
tog_minusSave Directory

You can specify the default save directory.  Pick the Pick Folder button to select a different folder.  When you pick Save from the Project tab, this is the folder where the file is saved.  To overwrite the original g-code, use the Save G-Code command from the Edit tab.
