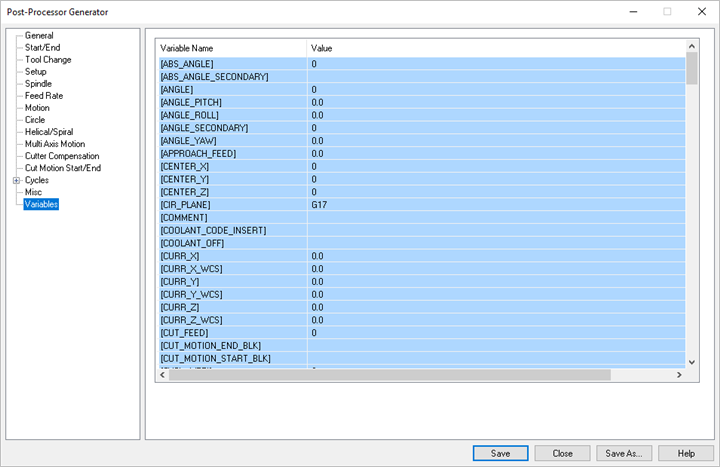

Variable
|
Comments
|
[ABS_ANGLE]
|
|
[ABS_ANGLE_SECONDARY]
|
|
[ANGLE]
|
|
[ANGLE_PITCH]
|
|
[ANGLE_ROLL]
|
|
[ANGLE_SECONDARY]
|
|
[ANGLE_YAW]
|
|
[APPROACH_FEED]
|
|
[CENTER_X]
|
|
[CENTER_Y]
|
|
[CENTER_Z]
|
|
[CIR_PLANE]
|
|
[COMMENT]
|
Output comments.
|
[COOLANT_CODE_INSERT]
|
|
[COOLANT_OFF]
|
|
[CURR_X]
|
The X coordinate of current point.
|
[CURR_X_WCS]
|
The X coordinate of current point in World Coordinates
|
[CURR_Y]
|
The Y coordinate of current point.
|
[CURR_Y_WCS]
|
The Y coordinate of current point in World Coordinates
|
[CURR_Z]
|
The Z coordinate of current point.
|
[CURR_Z_WCS]
|
The Z coordinate of current point in World Coordinates
|
[CUT_FEED]
|
|
[CUT_MOTION_END_BLK]
|
|
[CUT_MOTION_START_BLK]
|
|
[CYCL_1/TPI]
|
1/TPI (only for TAP cycle)
|
[CYCL_CLEAR+DEPTH]
|
Drill Depth + Clear. (only for cycles except C-SINK)
|
[CYCL_CLEAR+INCR]
|
|
[CYCL_CLEAR]
|
Clearance. (only for cycles)
|
[CYCL_CSINK_DEPTH+CLEAR]
|
Drill Depth + Clear. (only for C-SINK cycle)
|
[CYCL_CSINK_DEPTH]
|
Drill Depth. (only for C-Sink cycle)
|
[CYCL_DEPTH]
|
Drill Depth. (only for cycles except C-SINK)
|
[CYCL_DWELL]
|
Dwell. (only for cycles)
|
[CYCL_INCR]
|
Step Increment. (only for cycles)
|
[CYCL_IPM]
|
IPM. (only for cycles except TAP)
|
[CYCL_IPR]
|
IPR. (only for TAP cycle)
|
[CYCL_NEG_CLEAR+DEPTH]
|
-( Drill Depth + Clear). (only for cycles except C-SINK)
|
[CYCLE_NUM_STEPS]
|
|
[CYCL_ORIENT]
|
Orient. (only for cycles)
|
[CYCL_SCALED_DWELL]
|
Dwell * Scale Factor (only for cycles)
|
[CYCL_TPI]
|
|
[CYCLE_Z]
|
This variable stores the Z value of drill points.
|
[CYCL_Z+CLEAR]
|
Next Z + Clearance. (only for cycles)
|
[CYCL_Z+DEPTH+CLEAR]
|
Next Z + Depth + Clearance. (only for cycles)
|
[CYCL_Z+DEPTH]
|
Next Z + Depth. (only for cycles)
|
[CYCL_Z-DEPTH]
|
Next Z - Depth. (only for cycles)
|
[DELIMITER]
|
Delimiter definition.
|
[DEPART_FEED]
|
Outputs the Departure feedrate value for the currently operation.
|
[ENGAGE_FEED]
|
Outputs the Engage feedrate value for the currently operation.
|
[EOB]
|
The end of block character.
|
[EXTRUSION]
|
|
[EXTRUSION_BLK]
|
|
[EXTRUSION_CODE]
|
|
[FEEDRATE]
|
FeedRate Value.
|
[FEEDRATE_BLK]
|
FeedRate Block.
|
[FEEDRATE_CODE]
|
Outputs the Feedrate code
|
[FEEDRATE_UNITS_CODE]
|
Outputs the Feedrate Units code
|
[FIRST_TOOL_NUM]
|
|
[G_CODE]
|
The next G-Code. This is translated to linear, rapid, arc or cycle G-Code.
|
[HELIX_ANGLE]
|
|
[HELIX_CCW_ARC]
|
|
[HELIX_CW_ARC]
|
|
[HELIX_LEAD]
|
|
[HELIX_NUM_REV]
|
|
[HELIX_RADIUS]
|
|
[HELIX_TOTAL_DEPTH]
|
|
[INPUTFILE_NAME]
|
|
[INPUTFILE_NAME_LONG]
|
|
[INV_TIME_FEEDRATE_OFF]
|
|
[INV_TIME_FEEDRATE_ON]
|
|
[LINEAR]
|
The linear motion code.
|
[MOP_NAME]
|
|
[NEXT_ABS_X_WCS]
|
The next absolute X coordinate point in World Coordinates.
|
[NEXT_ABS_Y_WCS]
|
The next absolute Y coordinate point in World Coordinates.
|
[NEXT_ABS_Z_WCS]
|
The next absolute Z coordinate point in World Coordinates.
|
[NEXT_I]
|
|
[NEXT_J]
|
|
[NEXT_K]
|
|
[NEXT_NONMDL_E]
|
|
[NEXT_NONMDL_I]
|
|
[NEXT_NONMDL_J]
|
|
[NEXT_NONMDL_K]
|
|
[NEXT_NONMDL_L]
|
|
[NEXT_NONMDL_R]
|
|
[NEXT_NONMDL_X]
|
The next non-modal X coordinate point in local Machine Coordinates.
|
[NEXT_NONMDL_X_WCS]
|
The next non-modal X coordinate point in World Coordinates.
|
[NEXT_NONMDL_Y]
|
The next non-modal Y coordinate point in local Machine Coordinates.
|
[NEXT_NONMDL_Y_WCS]
|
The next non-modal Y coordinate point in World Coordinates.
|
[NEXT_NONMDL_Z]
|
The next non-modal Z coordinate point in local Machine Coordinates.
|
[NEXT_NONMDL_Z_WCS]
|
The next non-modal Z coordinate point in World Coordinates.
|
[NEXT_R]
|
|
[NEXT_TOOL_NAME]
|
|
[NEXT_TOOL_NUM]
|
|
[NEXT_X]
|
The next X coordinate point in Machine Coordinates.
|
[NEXT_X_WCS]
|
The next X coordinate point in World Coordinates.
|
[NEXT_Y]
|
The next Y coordinate point in Machine Coordinates.
|
[NEXT_Y_WCS]
|
The next Y coordinate point in World Coordinates.
|
[NEXT_Z]
|
The next Z coordinate point in Machine Coordinates.
|
[NEXT_Z_WCS]
|
The next Z coordinate point in World Coordinates.
|
[OUTPUTE_MODE_CODE]
|
|
[OUTPUT_UNITS_CODE]
|
English or Metric outputs code.
|
[OUTPUTFILE_NAME]
|
|
[OUTPUT_FILENAME_LONG]
|
|
[PARTNAME]
|
|
[PARTNUM]
|
|
[PLUNGE_FEED]
|
|
[POST_NAME]
|
|
[POST_NAME_LONG]
|
|
[PREV_TOOL_ADJST_REG]
|
|
[PREV_TOOL_CUTCOM_REG]
|
|
[PREV_TOOL_NUM]
|
|
[PREV_TOOL_NUM_FLUTES]
|
|
[PREV_TOOL_ZOFFSET]
|
|
[RAPID]
|
The rapid motion code.
|
[RAPID_FEED]
|
|
[RETRACT_FEED]
|
|
[ROTATION_AXIS]
|
|
[ROTATION_AXIS_SECONDARY]
|
|
[ROTATION_DIR]
|
|
[ROTATION_DIR_SECONDARY]
|
|
[ROTATION_FEEDVALUE]
|
|
[ROTATION_MODE]
|
|
[SEQ_PRECHAR]
|
Letter that is prefixed before the sequence number
|
[RT_NXT_X]
|
The next X coordinate. (Modal)
|
[RT_NXT_Y]
|
The next Y coordinate. (Modal)
|
[RT_NXT_Z]
|
The next Z coordinate. (Modal)
|
[RT_NXT_NONMDL_X]
|
The next X coordinate. (NonModal)
|
[RT_NXT_NONMDL_Y]
|
The next Y coordinate. (NonModal)
|
[RT_NXT_NONMDL_Z]
|
The next Z coordinate. (NonModal)
|
[SEQNUM]
|
The actual sequence number.
|
[SPINDLE_ARC]
|
Spindle direction.
|
[SPINDLE_BLK]
|
Spindle Block.
|
[SPINDLE_CODE]
|
|
[SPINDLE_SPD]
|
Spindle speed.
|
[SPINDLE_SPD_MAX]
|
|
[SPINDLE_SPD_TYPE]
|
|
[SPIRAL_ANGLE]
|
|
[SPIRAL_CCW_ARC]
|
|
[SPIRAL_CW_ARC]
|
|
[SPIRAL_END_RADIUS]
|
|
[SPIRAL_LEAD]
|
|
[SPIRAL_NUM_REV]
|
|
[SPIRAL_START_RADIUS]
|
|
[SPIRAL_TOTAL_LENGTH]
|
|
[START_CHAR]
|
The program start character.
|
[START_POSITION_X]
|
|
[START_POSITION_Y]
|
|
[START_POSITION_Z]
|
|
[START_X]
|
The X coordinate of start point.
|
[START_X_WCS]
|
The X coordinate of start point in World Coordinates.
|
[START_Y]
|
The Y coordinate of start point.
|
[START_Y_WCS]
|
The Y coordinate of start point in World Coordinates.
|
[START_Z]
|
The Z coordinate of start point.
|
[START_Z_WCS]
|
The Z coordinate of start point in World Coordinates.
|
[STEP_NEXT_X]
|
|
[STEP_NEXT_Y]
|
|
[STEP_NEXT_Z]
|
|
[STEP_START_DEPTH]
|
|
[STOCK_LENGTH_X]
|
UNDEFINED is output if there is no stock defined when posting occurs.
|
[STOCK_LENGTH_Y]
|
[STOCK_LENGTH_Z]
|
[STOCK_MAX_X]
|
[STOCK_MAX_Y]
|
[STOCK_MAX_Z]
|
[STOCK_MIN_X]
|
[STOCK_MIN_Y]
|
[STOCK_MIN_Z]
|
[STOP_CHAR]
|
The program end character.
|
[TEMPERATURE]
|
|
[TEMPERATURE_BED_SET_CODE]
|
|
[TEMPERATURE_BED_WAIT_CODE]
|
|
[TEMPERATURE_EXTRUDER_SET_CODE]
|
|
[TEMPERATURE_EXTRUDER_WAIT_CODE]
|
|
[TEMPERATURE_SET_BLK]
|
|
[TEMPERATURE_SET_CODE]
|
|
[TEMPERATURE_WAIT_BLK]
|
|
[TEMPERATURE_BED_WAIT_CODE]
|
|
[THREAD_ANGLE]
|
|
[THREAD_DEPTH]
|
|
[THREAD_DIR]
|
|
[THREAD_FINISH_NUMCUTS]
|
|
[THREAD_FINISH_STOCK]
|
|
[THREAD_FINISH_Z]
|
|
[THREAD_FIRST_DEPTH]
|
|
[THREAD_INFEED_TYPE]
|
|
[THREAD_LENGTH]
|
|
[THREAD_MAJOR_DIR]
|
|
[THREAD_MIN_DEPTH]
|
|
[THREAD_MINOR_DIA]
|
|
[THREAD_PITCH]
|
|
[THREAD_PULL_OUT_DIST]
|
The pull out value is specified under G76 parameters in threading mop in turning.
|
[THREAD_TAPER]
|
|
[TIME_STAMP]
|
|
[TOOL_ADJ_REG]
|
Tool Adjust Register number.
|
[TOOL_CHG_PT_X]
|
|
[TOOL_CHG_PT_Y]
|
|
[TOOL_CHG_PT_Z]
|
|
[TOOL_CUTCOM_REG]
|
|
[TOOL_DIA]
|
Tool Diameter.
|
[TOOL_LENGTH]
|
Tool length.
|
[TOOL_NAME]
|
|
[TOOL_NUM]
|
Tool number.
|
[TOOL_NUM_FLUTES]
|
|
[TOOL_RAD]
|
Tool Radius.
|
[TOOL_ZOFFSET]
|
|
[VMPFILE_NAME]
|
|
[WMPFILE_NAME_LONG]
|
|
[WORK_OFFSET_NUM]
|
|
[WORK_OFFSET_PREFIX]
|
|
[ZFEEDRATE]
|
|
INV_TIME_FEEDRATE_FLAG
|
|
