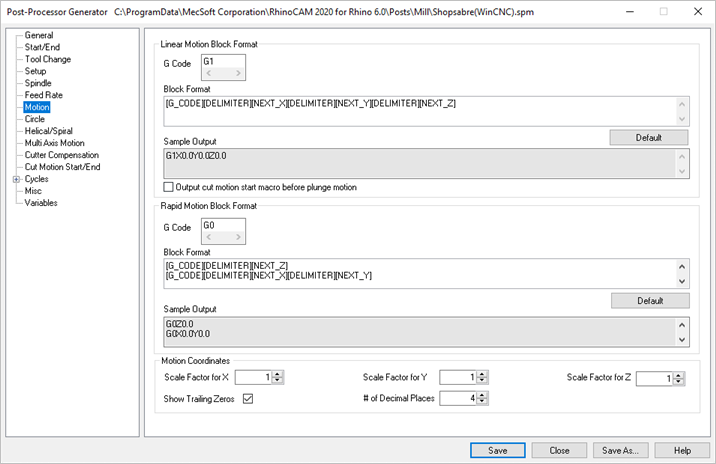

This tab is used to define the linear motion outputs of a post-processor. You can use multiple lines to define the Block Format in both the Linear Motion Block and the Rapid Motion Block.
 PPG Editor: Motion |
Used to define the output format for the cut motions ( e.g.: G1). The sample output can be seen in the non-editable Sample Output field. Multiple lines of code are supported. •G Code: Typically a G1 •Block Format: Example: [G_CODE][NEXT_X][NEXT_Y][NEXT_Z] •Default: Reset all values in this section to their system defaults. •Sample Output: This displays how the posted output will look. •Output cut motion start macro before plunge motion: Checking this box will output the cut motion start macro defined under Cut Motion Start/End section before the plunge motion in the posted code. |
Used to define the output format for the rapid motions ( e.g.: G0). The sample output can be seen in the non-editable Sample Output field. Multiple lines of code are supported. •G Code: Typically G0 •Block Format: Example: •Default: Reset all values in this section to their system defaults. •Sample Output: This displays how the posted output will look. |
•Scale Factor for X, Y, Z: Scale factor of the coordinate values. (Includes circles and cycles) •Show Trailing Zeros: Show the trailing zeros ( e.g. 5.4 is output as 5.4000) •# of Decimal Places: Number of digits output after the decimal point |
