PPG Editor: Cut Motion Start/End

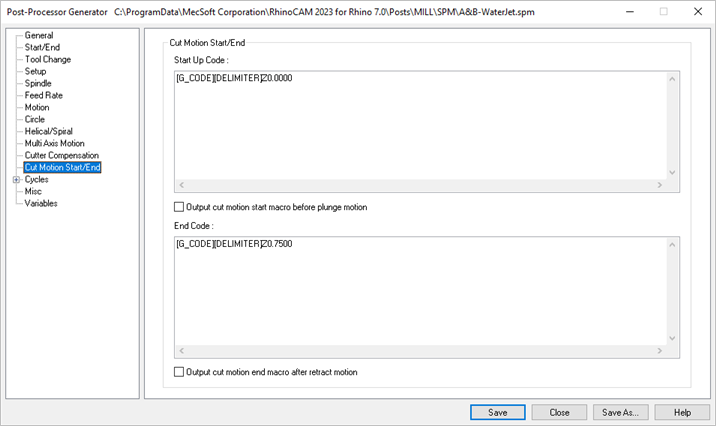

The Cut Motion Start/End dialog allows you to define Start and End cut motion codes.



tog_minusPPG Editor: Cut Motion Start/End
PPG Editor: Cut Motion Start/End

PPG Editor: Cut Motion Start/End



Output cut motion start macro before plunge motion

You can have the Cut Motion Start Up Code posted before plunge motions by checking the box.

Output cut motion end macro after retract motion

You can have the Cut Motion End Macro posted after the retract motions by checking this box.
