Simulation Preferences

<< Click to Display Table of Contents >>

Navigation:  G-CODE EDITOR Modile > Simulate Tab > Simulate Options >

Simulation Preferences

System PreferencesSelect this button to display the Simulation Preferences dialog.  This is the same as selecting Set CAM System Preferences > Simulation.



tog_minusTo Access this Command:

Navigate to: click: Project tab > Load g-code file > Simulate Tab > System Preferences

Note: To access this tab activate (i.e., double-left-click) on a loaded g-code file from the Project tab.

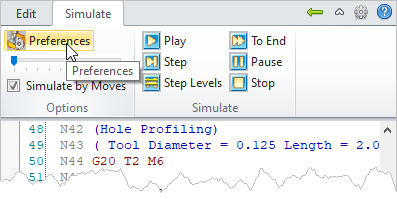

tog_minusG-Code Browser: Simulate tab, Preferences menu item
G-Code Browser: Simulate, Preferences menu item

G-Code Browser: Simulate, Preferences menu item
tog_minusProcedure

1.Select Preferences from the Simulate tab.  This will display the Simulate Preferences dialog.

Preferences > Simulation

Preferences > Simulation

2.Make desired changes and then pick Apply.  Pick OK to close the dialog.
