Simulate to End

<< Click to Display Table of Contents >>

Navigation:  G-CODE EDITOR Modile > Simulate Tab > Simulation Controls >

Simulate to End

Simulate to EndYou can select this command to move the End of the simulation.  If Stock is defined, the final cut material simulation is displayed.



tog_minusTo Access this Command:

Navigate to: click: Project tab > Load g-code file > Simulate Tab > Simulate to End (with Simulation Window displayed)

Note: To access this tab activate (i.e., double-left-click) on a loaded g-code file from the Project tab.

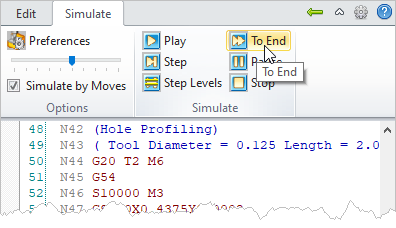

tog_minusG-Code Browser: Simulate, To End menu item
G-Code Browser: Simulate, To End menu item

G-Code Browser: Simulate, To End menu item
tog_minusProcedure

1.Select To End from the Simulate tab to move the End of the simulation.
