Show G-Code Info

<< Click to Display Table of Contents >>

Navigation:  G-CODE EDITOR Modile > Edit Tab >

Show G-Code Info

Display G-Code InformationUse this command to display an information window of the current contents of the G-Code Editor.



tog_minusTo Access this Command:

Navigate to: click: Project tab > Load g-code file > Edit tab > Display G-Code Information

Note: To access this tab activate (i.e., double-left-click) on a loaded g-code file from the Project tab.
tog_minusInfo menu item

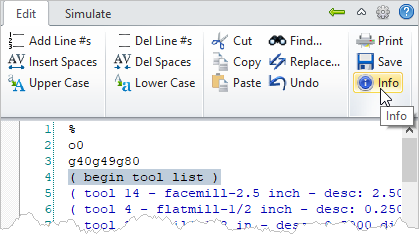

G-Code Browser: Edit G-Code tab, Info menu item

G-Code Browser: Edit G-Code tab, Info menu item
tog_minusProcedure

1.Select Info from the Edit tab.

2.This will display the Information dialog containing information related to the current g-code file.

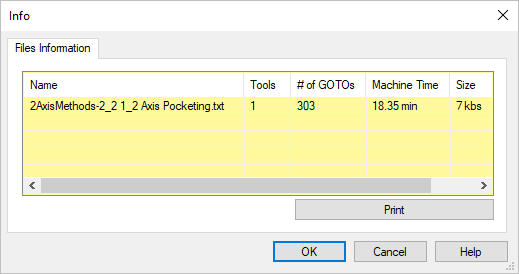

Information dialog

Information dialog
