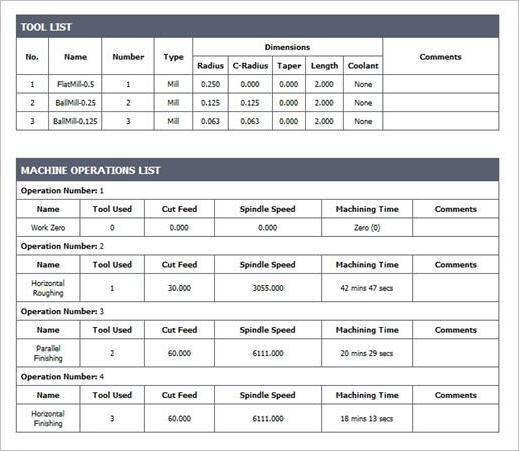

This creates a Shop Document (i.e., a Setup Sheet) for the programmed part which includes screen captures, estimated machining time, tool list and the machining operations list as well as stock size and other important information. The document can be saved in HTML or Excel format.

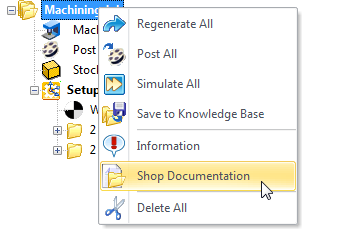

Shop documentation can be generated by selecting Setup under the Program tab, right click and select Shop Documentation.  Select Shop Documentation from the Right-click Menu |

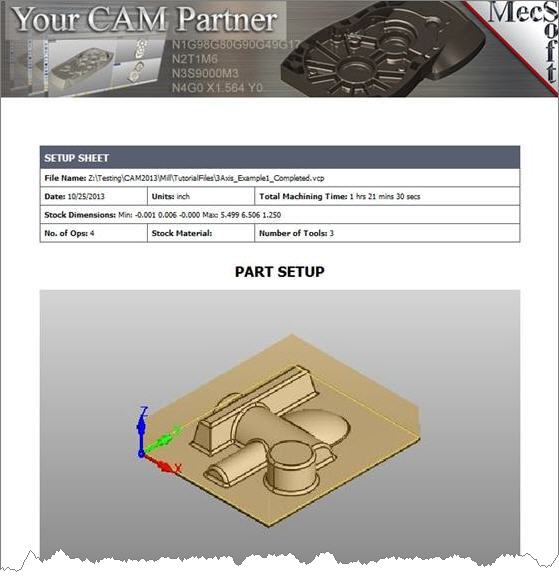

You can select one of 4 HTML Templates and an Excel Template from the Save Shop Documentation File dialog and then pick Save to generate shop documentation. This is saved as an HTML file and can be printed and handed over to the operator in preparation for the part to be machined on the CNC machine.
|
