Machining Information

<< Click to Display Table of Contents >>

Navigation:  MILL Module > Editing Machining Operations >

Machining Information

This displays a dialog box with the following information about the selected Operation, the Setup or the entire Machining Job:

•Operation Name

•Status

•Tool Name and Tool #

•Cut Feed Rate

•Spindle Speed

•# of GOTOs

•Machine Time



tog_minusSelect Information from the Right-click Menu

Machining Operations Information can be viewed by selecting a Setup, right mouse button click and left click on Information.

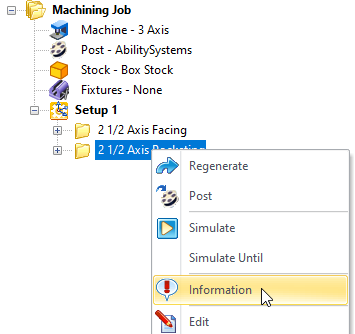

Select Information from the Right-click Menu

Select Information from the Right-click Menu
tog_minusDialog Box: Machining Operations Information (MILL Module)

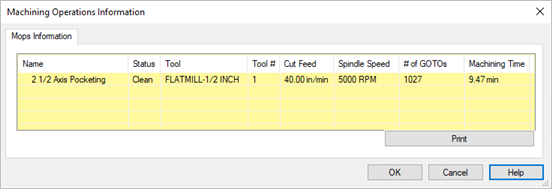

Dialog Box: Machining Operations Information

Dialog Box: Machining Operations Information

Optimize Machining Time Estimates!In any MecSoft CAM product you can get an Information report about a selected toolpath operation, a Setup or all operations in the Machining Job. This report contains some very useful information that includes the Tool #s used, the Cut Feed, the # of GOTO motions and most importantly, the estimated Machining Time.

Read the full article...
