Select surface edge curves to create a region.

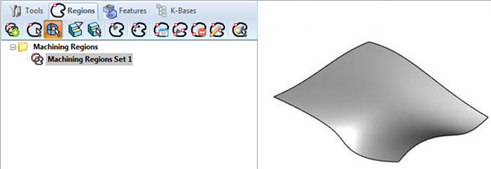

Click Select Surface Edge Areas and you will be prompted you to select surface edges for machining regions.



Select surface edge and press enter or right mouse button click to end selection.

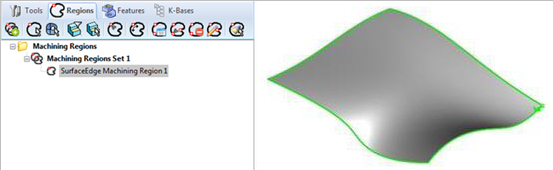

The selected surface edge is listed under Machining Region Set 1 as Surface Edge Machining Region 1.

Selecting Surface Edge Machining Region 1 from Regions tab highlights the geometry.

Selecting multiple surface edges adds all the edges to the same machining region.
