Flat Areas Selection Filter

Flat Area Region Selection FilterSelecting Flat Area Region Selection Filter displays a dialog which allows you to choose the type of boundary areas to select for flat area selection.

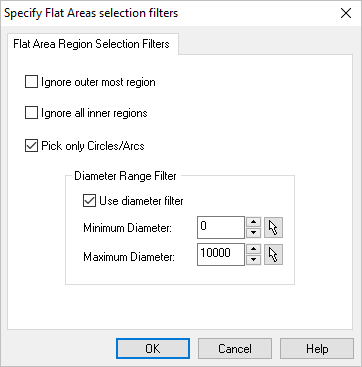

tog_minusDialog Box: Flat Specify Area Region Selection Filters
Dialog Box: Flat Specify Area Region Selection Filters

Dialog Box: Flat Specify Area Region Selection Filters

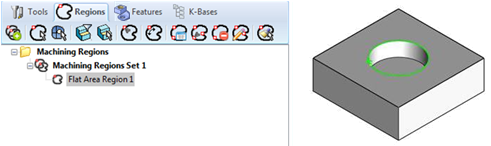

tog_minusIgnore outer most region

Selecting this option would leave outside boundaries when using Select Flat Areas.

Ignore outer most region

Ignore outer most region

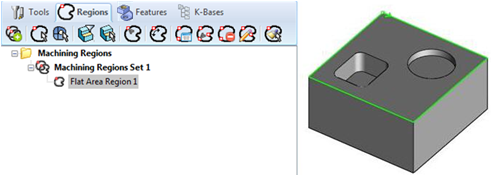

tog_minusIgnore all inner regions

Selecting this option would leave all inside boundaries when using Select Flat Areas.

Ignore all inner regions

Ignore all inner regions
tog_minusPick only Circles/Arcs

Selecting this option would allow selection of holes within a specified diameter range when using Select Flat Areas.

Pick only Circles/Arcs

Pick only Circles/Arcs

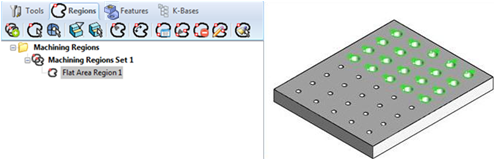

In the example shown we have set minimum and maximum diameter = 0.5

PickCheck the Use Diameter Filter box to select holes within a specified diameter range.  You can enter Minimum Diameter and Maximum Diameter values.  If you select the Pick button, the diameter value of the selected feature will be entered into the field. Note: These filter settings are saved with the part file.  If your control geometry changes, you are warned to check your filter settings before proceeding.
