Reverse Cut Direction

<< Click to Display Table of Contents >>

Navigation:  MILL Module > Creating Machining Operations > Control Geometry > Predefined Machining Regions >

Reverse Cut Direction

Reverse Curve DirectionAllows you to reverse curve direction for a selected curve region.

Reverses curve direction for open and closed curves. The curve direction is represented by an arrow on the curve

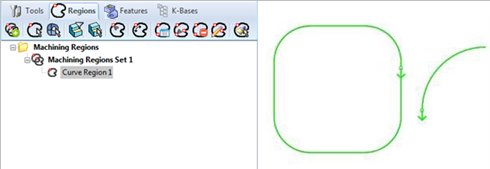

Select a Curve Region under Regions tab and click Reverse Curve Direction. Reverse Curve Direction

Select a Curve Region under Regions tab and click Reverse Curve Direction.

Select a Curve Region under Regions tab and click Reverse Curve Direction.

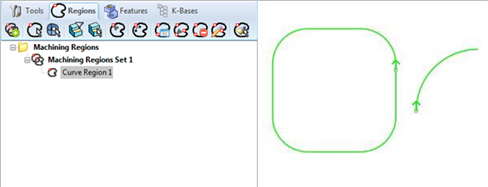

The curve directions are reversed and the direction arrow is reversed on the curves.

The curve directions are reversed and the direction arrow is reversed on the curves.

The curve directions are reversed and the direction arrow is reversed on the curves.
