Automatically creates bridge points for a selected curve region. Bridge points can be set for open and closed curves.

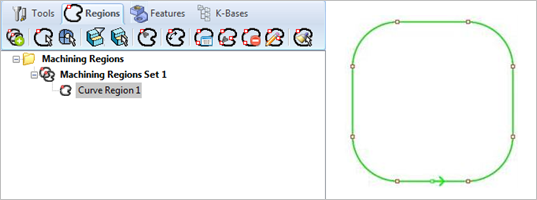

Select a Curve Region under Regions tab and click Automatic Bridge Point on Selections.

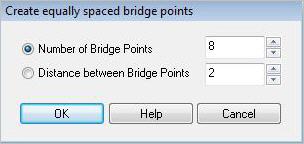

The following dialog appears and allows you to create equally spaced bridge points.

Bridge points can be specified by specifying total number of bridge points on a curve or distance between points.

In the above example, a total of 8 bridge points are created and the points are represented in Red.
