Rename

<< Click to Display Table of Contents >>

Navigation:  MILL Module > Editing Machining Operations >

Rename

You can Rename a machining operation or the Setup in the Machining Browser by selecting it, right click and select Rename from the context menu.



tog_minusSelect Rename from the Right-click Menu

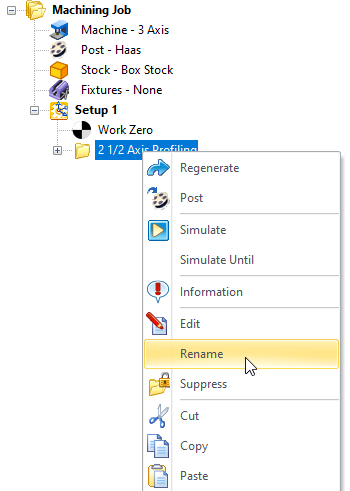

Select Rename from the Right-click Menu

Select Rename from the Right-click Menu

Selecting Rename allows you to edit the operation name.

Edit the Operation's Name

Edit the Operation's Name
tog_minusConventions for Renaming Operations

Do not use any of these common illegal characters/symbols in your Mop Names:

DO NOT USE these Characters when renaming Mops

#

pound

?

question mark

%

percent

/

forward slash

&

ampersand

$

dollar sign

{

left bracket

!

exclamation point

}

right bracket

'

single quotes

\

back slash

"

double quotes

<

left angle bracket

:

colon

>

right angle bracket

@

at sign

*

asterisk





Also, keep these rules in mind:

•Do not start or end your Mop Names with a space or period

•Keep your file names to a reasonable length and be sure they are under 31 characters.
