This dialog allows user to orient the part to have it aligned parallel to World Coordinate System (WCS). The dialog offers a convenient way of selecting each of the six principal directions to set the cutting direction.
|
Screen Activity
|
Comments
|
Step 1
|
Open part file.
|
|
Step 2
|

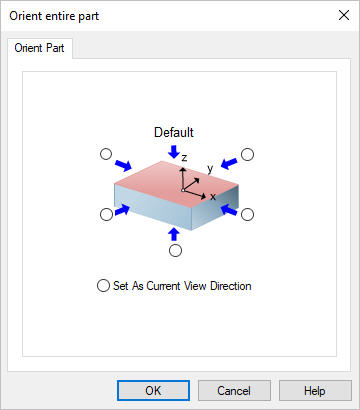

Select Part Orient… from Transform menu to display the Orient Entire Part dialog box.
|
|
Step 3
|
From the dialog box, select the WCS direction to orient the part to.
|
|
Step 4
|
Select to Set as Current View Direction if desired.
|
Optional
|
Step 5
|
Pick OK and the part is now oriented as shown below.
|
|
|
Once you select a WCS direction, all of the geometry will be rotated to an orientation where the selected cutting direction becomes the negative Z axis.
|
Orients the part parallel to the current view orientation.
|
|
