Orient by 3 Pts

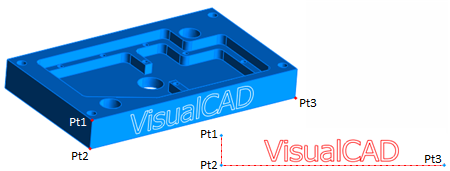

Orient by 3 PointsThis command allows you to transform the currently selected objects using three reference points and three target points.

orient-by-3points

tog_minusCommand Prompts

Pick or enter first reference point.

Pick or enter second reference point.

Pick or enter third reference point.

Pick or enter first target point.

Pick or enter second target point.

Pick or enter third target point.
tog_minusBasic Procedure



Screen Activity

Comments

Step 1

Pick three reference points in relation to the selected objects.

The selected objects are
re-oriented.

Step 2

Pick three target points to re-orient the objects.
