1.Stock model must be loaded and displayed

2.Machine tool must be defined using Load from File under Machine Setup

3.Turn on Machine Tool Visibility under Simulate tab and

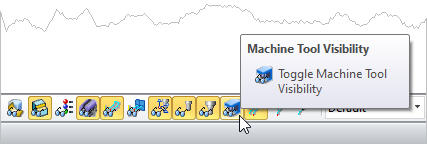

Location of the Toggle Machine Tool Simulation Icon

4.A machining operation must be active

Then using the controls in the Simulate tab of the Machining Browser you can perform the cutting simulation.

Refer to Load From File under Machine Setup for detailed description.

An example of cut material simulation with machine tool is shown below.

Example of Cut Material Simulation with Machine Tool

A closer look at the machine tool simulation.

A closer look at the machine tool simulation
