You can generate a Setup Sheet for one or more toolpath operations. There are several templates available to choose from. Each provides various degrees of information for the selected operations.
To generate a Setup Sheet:
1.Create and adjust the toolpath operations that you want to estimate.
2.Make sure the toolpaths have generated cleanly. Each toolpath when generated is listed under a Setup in the Machining Job. If the operation is flagged it means that it needs to be regenerated.
 Note: MILL Module shown, Similar for MILL-TURN, TURN and Profile-NEST |
3.Select the Setup that you want to create a Setup Sheet for. You can also select the Machining Job.
 Note: MILL Module shown, Similar for MILL-TURN, TURN and Profile-NEST |

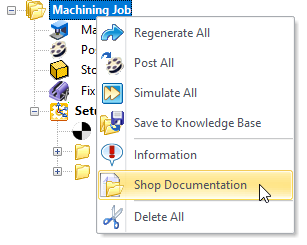

4.Right-click and select Shop Documentation to display the dialog.
 MILL Module shown, Similar for MILL-TURN, TURN and Profile-NEST
|

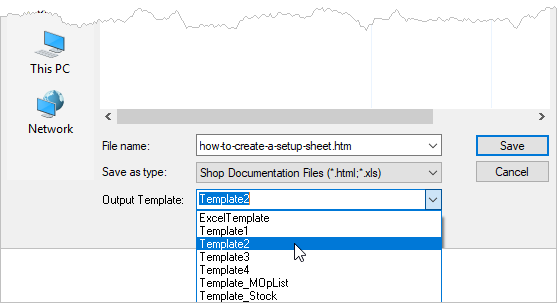

5.At the bottom of the dialog, select the Output Template to use. The Excel Template will display the Setup Sheet in a spreadsheet. All other template selections will display the Setup Sheet as an HTML page.
|
6.Enter a name for the Setup Sheet and pick Save.

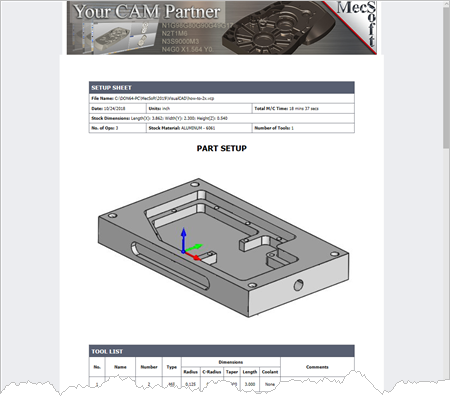

7.The Setup Sheet is generated and displayed. HTML pages are displayed in your default web browser.
|
