Properties Edit Mode

Properties, Edit ModeEdit Mode can be enabled by clicking on the Edit Mode icon in the Properties dialog and can be toggled on and off by clicking it. With Edit Mode active, the points are visible in the viewport and coordinates displayed in the properties dialog. They are grayed out in the Properties tab if Edit Mode is not active.

hint-iconYou can use the Properties dialog to parametrically edit certain types of geometry such as the radius of a circle or the length and width of a rectangle.  This allows you to quickly change geometry dimension values!

The Properties tab can be located in the Status Toolbar. The X, Y, and Z coordinates of the geometry can be modified by changing the Point values within the Properties tab under Objects or graphically by dragging them in the viewport. You can cycle through all the edit points and modify the X, Y and Z coordinates for each point by using the spinner increment. Cycling through these points highlights the points on the geometry in the viewport.



tog_minusProperties Dialog
Properties tab

Properties tab

Properties tab - Point Number 1

Properties tab - Point Number 1

doc_files_image244

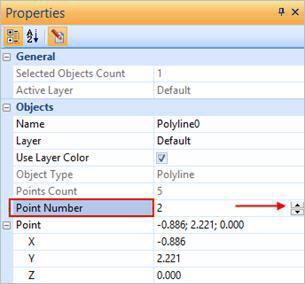

Properties tab - Point Number 2

Properties tab - Point Number 2

doc_files_image246
tog_minusBasic Procedure

Edit points can also be modified by picking the corner points graphically in the viewport with drag and drop.



Screen Pick

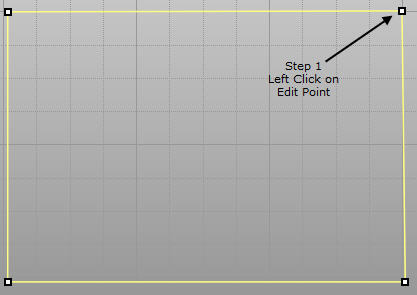

Step 1
Left-click on Edit Point

Left-click on Edit Point

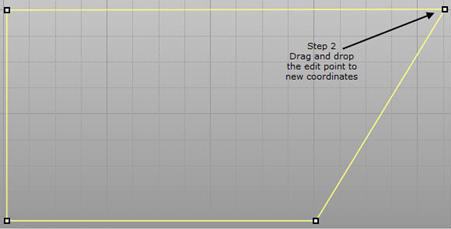

Step 2
Drag & Drop the Edit Point to new coordinates

Drag & Drop the Edit Point to new coordinates
tog_minusEdit Geometry Parametrically

You can parametrically edit the dimensions of geometry using the Properties dialog.

Just select the Edit icon Properties, Edit Mode until the dimension values are activated.  When you edit a dimension vales and close the Properties dialog the geometry to update automatically.

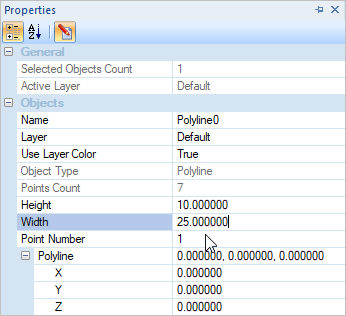

Edit the Length & Width of a Rectangle

Edit the Length & Width of a Rectangle

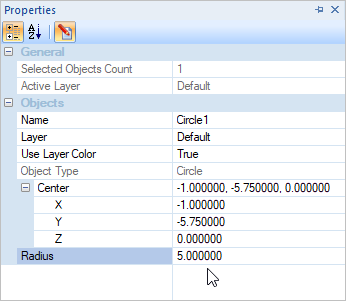

Edit the Radius of a Circle

Edit the Radius of a Circle
tog_minusEditing Line Widths

You can edit the width of a line or curve using the Properties dialog.

Just select the Edit icon Properties, Edit Mode until the object properties are activated.  Then set the Use Layer Thickness to False.  This will activate the Thickness field.  Drop down the Thickness menu and select a line width.  When you edit a dimension vales and close the Properties dialog the geometry to update automatically.

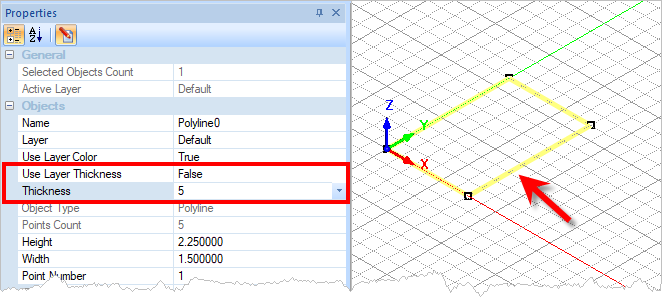

Edit the Width of a line or curve

Edit the Width of a line or curve

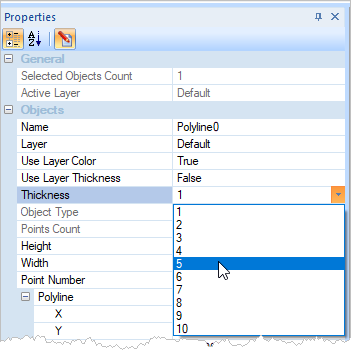

Line Width Property Selector

Line Width Property Selector
