Select by Layer

Select by LayerAll geometry on the desired layer will be selected.  All other geometry will be deselected.

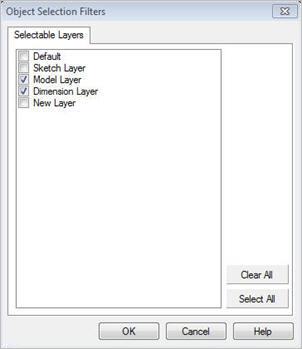

tog_minusObject Selection Filters dialog box (by layer)
Object Selection Filters dialog box (by layer)

Object Selection Filters dialog box (by layer)

•Selectable Types
Check the box next to the object types that you wish to select.

•Select All / Clear All
Selects or Clears all types selected.
