Allows you to manually select bridge points on curve region. Bridge points can be set for open and closed curves.
Select a Curve Region under Regions tab and click Manual Bridge Points on Selections

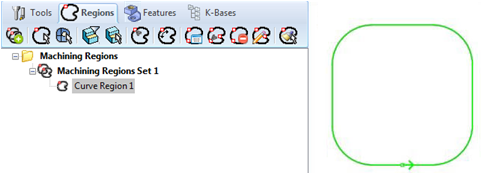

You will now be prompted to pick bridge point on selected curve/region.
You will now be prompted to pick bridge point on selected curve/region.
Click on the curve and a bridge point is inserted.
Click on the curve and a bridge point is inserted.

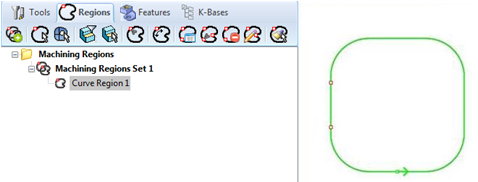

Above example shows manual bridge points selection in progress where 2 points have been selected.
Repeat by clicking on the curve to add additional bridge points.
Right Mouse button click to end.
Right Mouse button click to end.

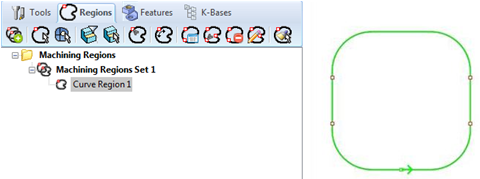

A total of 4 bridge points have been manually specified for the above curve region.
