This provides tools for the construction of geometry.
Visual Aids Enabled
This can be toggled on and off by selecting Visual Aids on the Status bar.
|
|

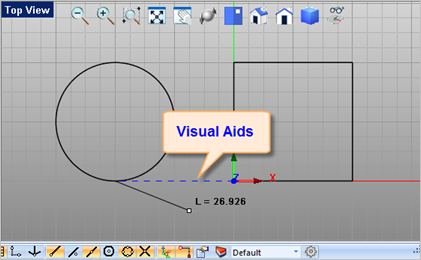

This feature can serve as a construction aid or a tool for referencing geometry. With Visual Aids enabled, it will allow viewing of construction lines as it references geometry. This allows for easier visual placement of new geometry. Curve creation using Visual Aids can be enabled by selecting the Visual Aids icon on the Status Toolbar.
The above example shows intersection reference of 2 curves
The above example shows tangent reference to 2 circles
