Groove Finishing

Groove Finishing OperationThis operation is used to finish the grooves. This operation is performed after the Groove Roughing operation. Groove Finishing can be of 3 types: OD, ID, and Front Facing. See Turn Groove Finishing for cut parameters.

Turning Operations



tog_minusTurn Groove Finishing Examples
OD Groove Finishing Toolpath Example

OD Groove
ID Groove Finishing Toolpath Example

ID Groove
Face Groove Finishing Toolpath Example

Face Groove
tog_minusTurn Groove Finishing Menu Item

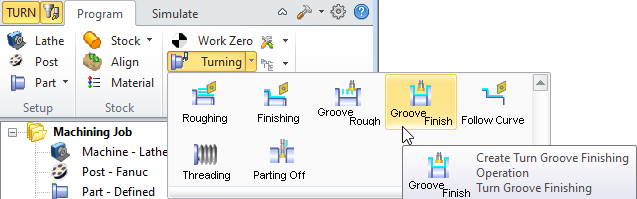

The Groove Finishing toolpath method is invoked by selecting the Program tab, clicking on the Turning button in the Machining Browser and selecting the Groove Finishing operation.

Turn Groove Finishing Menu Item

Turn Groove Finishing Menu Item
