T-Slotting, 2½ Axis
This method is used to machine open or closed T-Slots using a FaceMILL. This is similar to a profile operation. It offers roughing and finishing passes and allows stock material to be left on top, bottom and side.
See also: What Tool Types are Supported by this Operation?

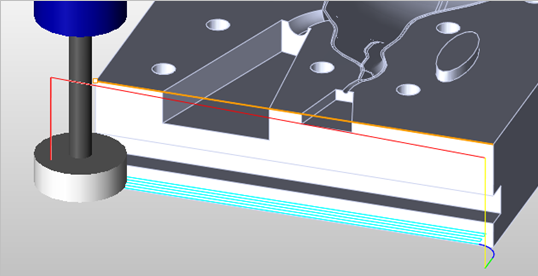

 2½ Axis T-Slotting |

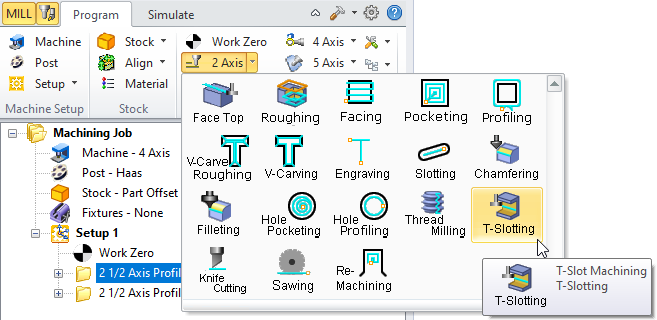

The T-Slotting toolpath method is invoked by selecting the Program tab, clicking on the 2½ Axis button in the Machining Browser and selecting the T-Slotting Operation.  2½ Axis T-Slotting Menu Item |
This section describes the various parameters that you can set to execute this machining operation. The dialog that is invoked when you choose this toolpath method is shown below:  Dialog Box: 2½ Axis T-Slotting |
