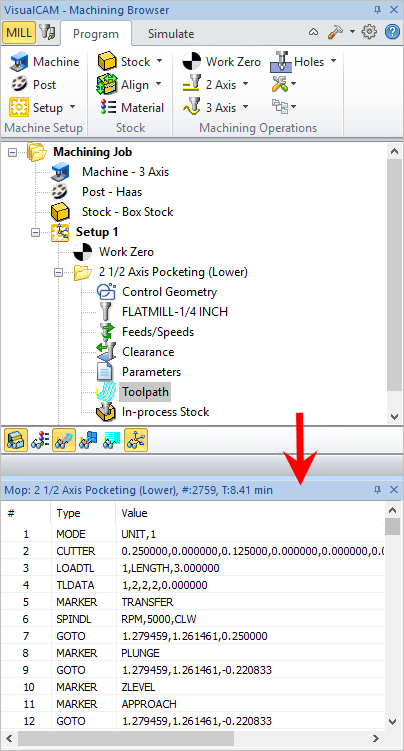

Once a machining operation is created, you can step through the toolpath motions using the Toolpath Viewer. To display the viewer, double click on the toolpath icon of the operation in the Machining Browser. The toolpath viewer is a dockable dialog bar that will be initially docked below the Machining Browser.
 The Toolpath Viewer Displayed |

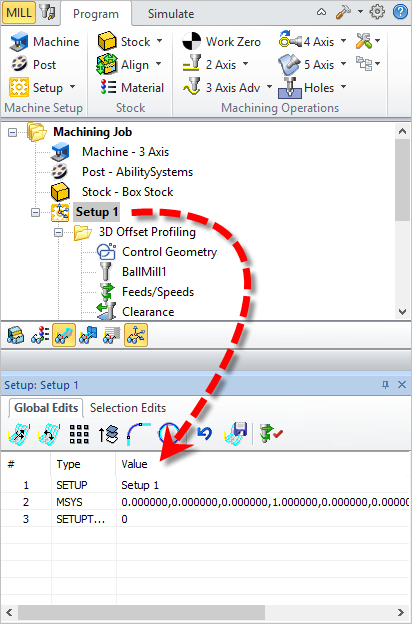

Setup information can be displayed in the toolpath editor/viewer. Errors are flagged and displayed in the toolpath editor/viewer if the setup orientation is not reachable  Setup Information is displayed in the Toolpath Viewer |

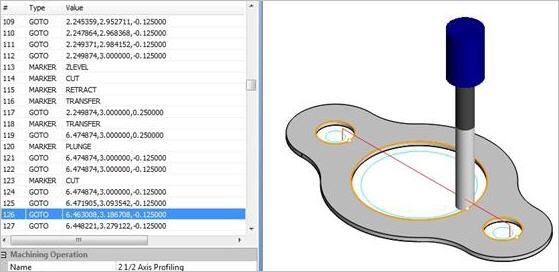

Select a GOTO motion in the Toolpath Viewer to view the tool motion for the generated toolpath. Make sure to turn on  Previewing a GOTO Motion in the Toolpath Viewer |
