Split a curve(s) by another curve. If the curves to split are nested, you can choose to honor the nest (Y) or not (N).
Split:: Pick Splitting curve
Split:: Pick curves to split. Hit Right Mouse Button/Enter when done.
Split:: Honor Nesting option(Y/N)?
Split:: Done
|
|
Screen Pick / Command Input
|

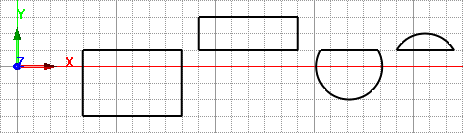

Geometry to split
|
|
Step 1
|
Split:: Pick Splitting curve
|
Step 2
|
Split:: Pick curves to split. Hit Right Mouse Button/Enter when done.
|
Step 3
|
Split:: Honor Nesting option(Y/N)? Y (Results)
Split:: Honor Nesting option(Y/N)? Y (Results separated)
Split:: Honor Nesting option(Y/N)? N (Results)
Split:: Honor Nesting option(Y/N)? N (Results separated)
|
|
