Shop Docs

<< Click to Display Table of Contents >>

Navigation:  Profile-NEST Module > Create Machining Operations > Tools and Utilities >

Shop Docs

This creates a Shop Document (i.e., a Setup Sheet) for the programmed part which includes screen captures, estimated machining time, tool list and the machining operations list as well as stock size and other important information.  The document can be saved in HTML or Excel format.



tog_minusSelect Shop Documentation from the Right-click Menu

Shop documentation can be generated by selecting Setup under the Program tab, right click and select Shop Documentation.

Select Shop Documentation from the Right-click Menu (Mill Module Shown)

Select Shop Documentation from the Right-click Menu
(Mill Module Shown)

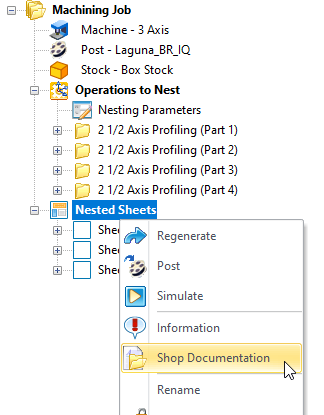

Select Shop Documentation from the Right-click Menu (Profile-NEST Module Shown)

Select Shop Documentation from the Right-click Menu
(Profile-NEST Module Shown)
tog_minusThe Setup Sheet is Saved and Displayed

You can select from an assortment of HTML Templates and an Excel Template from the Save Shop Documentation File dialog and then pick Save to generate shop documentation. This is saved as an external file and can be printed and handed over to the operator in preparation for the part to be machined on the CNC machine.

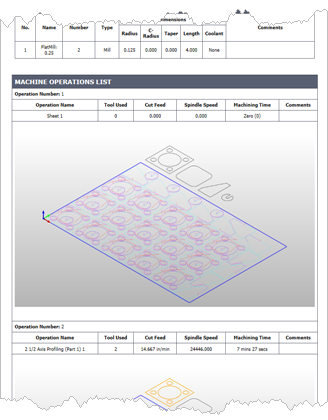

Sample Shop Document using Template 2

Sample Shop Document using Template 2
