This dialog box allows you to set Detection Filters for use when creating new Feature Machining Operations. You can detect a variety of machining features including Faces, Bosses, Slots, Pockets and Holes. You can also detect Partial Holes and set Diameter Range and Depth Range filters for Hole detection. Refer to each parameter definition below.

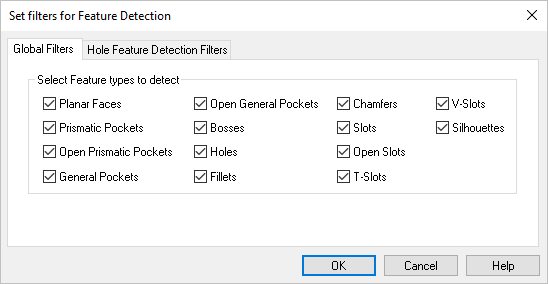

Use this tab of the dialog to select what feature types to detect. By default, all of the feature types are selected.  Dialog Box: Features Filters, Global Filters tab |

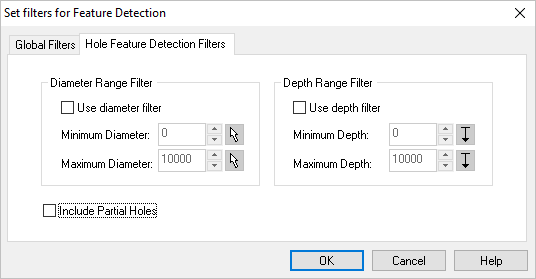

You can use the Pick button to select hole geometry. The diameter value of the selected hole will added to the dialog.
You can use the Pick button to select hole geometry. The Z level depth value of the selected hole will added to the dialog.
