Reverse Boring, 2½ Axis
This method is used to reverse-bore a stepped hole that cannot be accessed by regular bores. The Reverse Bore parameter settings are similar to the Drill parameters. Two user defined reverse boring cycles (RBore1 and RBore2) are supported. Note: For each tab in the dialog, select a topic from the Contents on the left.
See also: What Tool Types are Supported by this Operation?

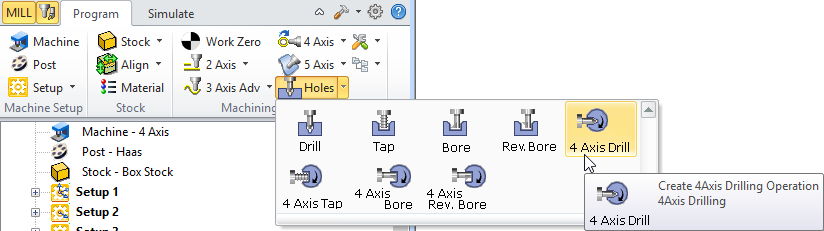

The Reverse Boring toolpath method is invoked by selecting the Program tab, clicking on the Holes button in the Machining Browser and selecting the Rev. Bore operation.  2½ Axis Hole Making, Reverse Bore Menu Item |

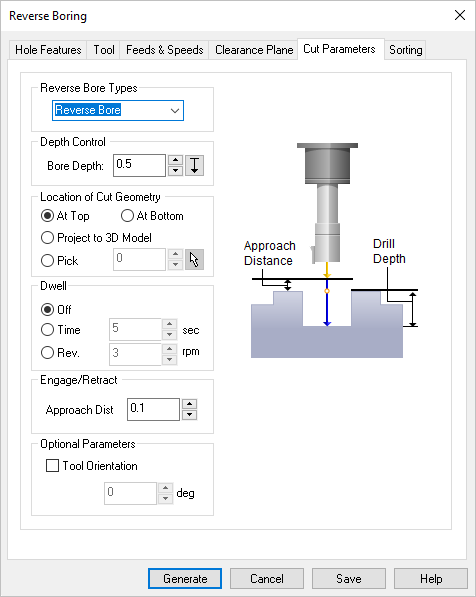

The toolpath generated depends on your defined parameters. The various parameters that you can set can be seen in the dialog box that is invoked when you choose the Reverse Bore operation. This dialog box is shown below.  Cut Parameters tab, Reverse Boring, 2½ Axis |
The Reverse Bore Types supported are: Reverse Bore RBore1: User Defined Reverse Bore RBore2: User Defined Reverse Bore |
