Re-Machining, 2½ Axis
This operation can be used to cut the uncut material from a previous operation using a larger tool. The reference (previous) operation type and tool diameter needs to be specified for this operation. The previous operation can be a Facing, Pocketing or Profiling. Given these parameters, all the uncut areas are automatically calculated. These uncut areas are processed similar to a facing operation.
See also: What Tool Types are Supported by this Operation?

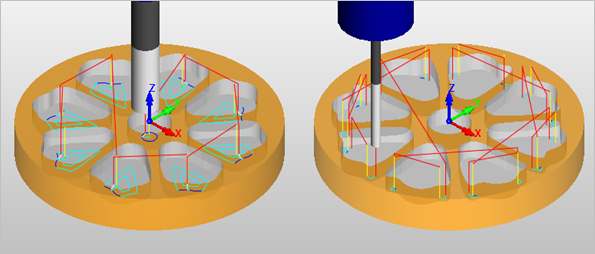

 2½ Axis Re-Machining |
The Re-Machining toolpath method is invoked by selecting the Program tab, clicking on the 2½ Axis button in the Machining Browser and selecting the Re-Machining Operation.  2½ Axis Re-Machining Menu Item |
This section describes the various parameters that you can set to execute this machining operation. The dialog that is invoked when you choose this toolpath method is shown below:  Dialog Box: 2½ Axis Re-Machining |
