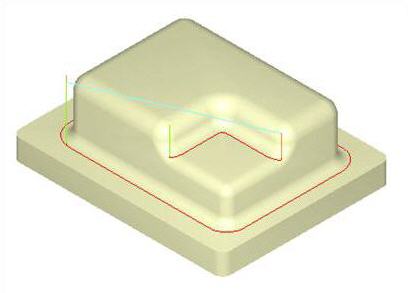

Used either for roughing, re-machining, or cleanup, the tool is driven along valleys and corners of the part. The system identifies all double contact or bi-tangency conditions based on the tool radius.  It then creates cutting paths along these locations.

When used as a roughing operation, valleys and corners are relieves so that subsequent operations will not encounter large amounts of material in these regions, thereby reducing tool deflection and wear. When used as a cleanup operation, scallops that remain after finishing operations are removed.
