The following dialog allows you to set the Part Off Parameters for Turn Part Off operations. You can set the Remaining Stub Radius, PartOff Position, Multiple Depth and Dwell via this property page. All the turning operations as mentioned below, except Part Off Position, can be carried on the Outer Diameter, Inner Diameter or the Front Face of the work-piece.

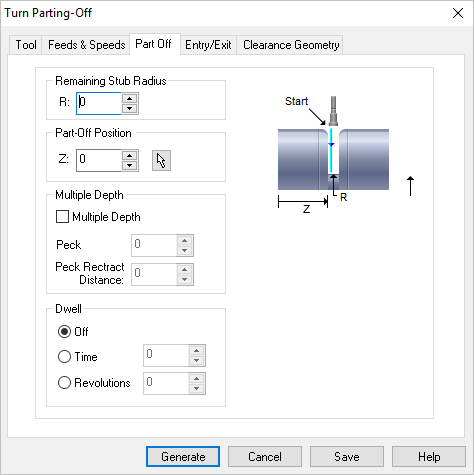

 Dialog Box: Turn Parting-Off |
Remaining Stub Radius (R) - This is the radius of the final part of the stock to be left uncut during the parting operation. |
Part-Off Position - This is the Z coordinate location for positioning the part-off location. You can enter the coordinate value directly or select the |
Multiple Depth - Check this box to enable Multiple Depth pecking for the part-off operation. For Peck enter the peck depth. For Peck Retract Distance, enter the distance that you want the tool to retract between pecks. |
Dwell - This is an optional parameter that allows you to set a machine delay (Dwell) during the Part-Off operation. You can set this to Off (no dwell), Time (enter the number of seconds to Dwell) or Revolutions (enter number of revolutions to Dwell). |
