You can define the raw stock model as a uniformly offset part model by selecting the Part Offset option from Create Turn Stock Model under the Program tab in Machining Browser.

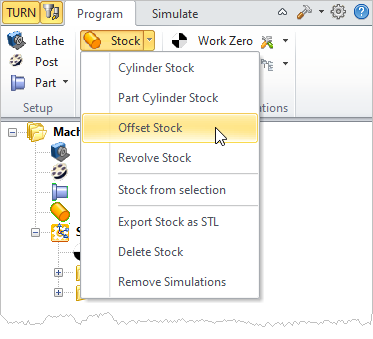

 Offset Stock Menu Item |

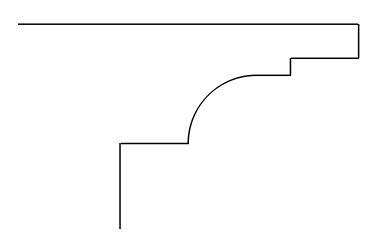

First, you need to select a 2D planar curve on the XZ axis before creating a Curve Offset Stock. User can then specify offset value to create the stock model.  Select 2D Planar Curve to Offset |

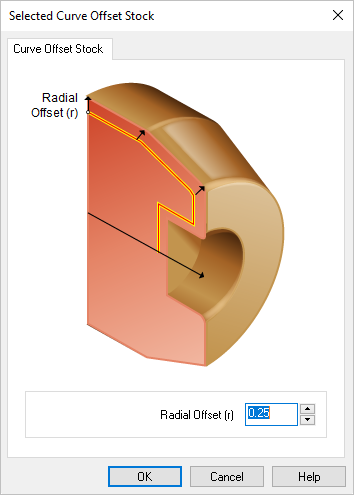

The following dialog will be invoked.  Dialog Box: Selected Curve Offset Stock |

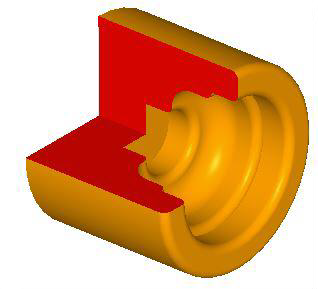

When you click on the OK button, a stock model based on the specified Radial Offset (r) is created. You can switch to the Simulate tab of the browser window to display the stock model that was created.  Selected Curve Offset Stock Example |
