Drive surfaces are the model geometry which is used for tool path generation; it is the surface you want to work on and defines the shape to be milled.  You can select multi surfaces. Drive surfaces determine the tool location and tool axis in some cases.

Drive curves are used to control the cutter locations.  Here you select one or more curves as drive curves and the tool will follow the curve and these curves will be projected onto the Drive surfaces. The tool positions will then be modified according to gouge checking on the part surfaces.

In this section of the Machining Features tab, you select one or more drive curves.

•Select Curves(s)
Selecting this button minimizes the dialog and prompts you to select curves. To end the selection press the enter key on the keyboard or right mouse button click.

The selected curves are displayed under Selected Machining Feature(s) list. Selecting a Region from the list highlights the geometry on the graphics area.

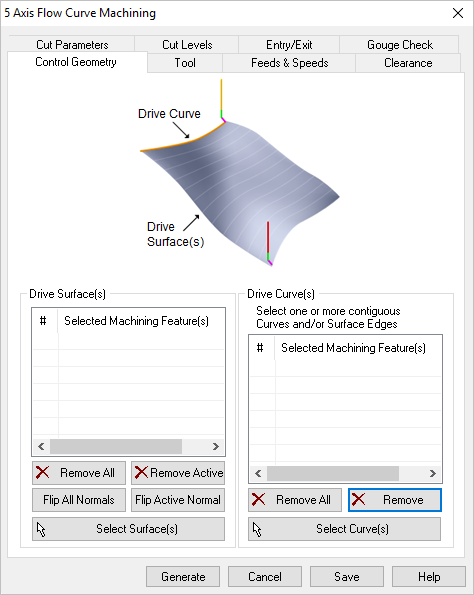

Drive Curve(s), dialog

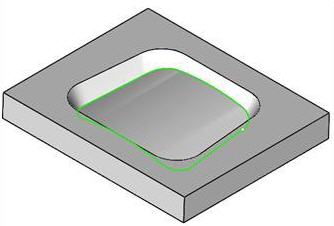

Drive Curve(s), highlighted

•Remove All
Removes all Selected Surfaces from the Selected Machining Feature(s) list.

•Remove Active
This allows you to remove a region from the selection list. You need to select a region from the list of Selected Machining Feature(s) and click Remove Active or press the delete key on the keyboard.

This section on the Machining Features tab, allows you to select the surfaces which act as drive surfaces.

•Select Surface(s)
Selecting this button minimizes the dialog and prompts you to select surfaces. To end the selection press the enter key on the keyboard or right mouse button click.

The selected surfaces are displayed under Selected Machining Feature(s) list. Selecting a surface from the list highlights the geometry on the graphics area and displays the surface normal.

Drive Surface(s), dialog

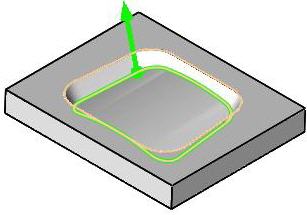

Drive Surface(s), highlighted

Remove All

Removes all Selected Surfaces from the Selected Machining Feature(s) list.

Remove Active

This allows you to remove a region from the selection list. You need to select a region from the list of Selected Machining Feature(s) and click Remove Active or press the delete key on the keyboard.

Surface Normals

Tool path orientation is determined by surface normal direction. So if you have generated the tool path on the wrong side you can simply change the surface normal by flipping the surface normal and regenerate your tool path again. The surface normal for each surface is represented by a green arrow on the surface.

Surface Normals

Flip All

This flips the surface normals of all surfaces selected as Machining Features.

Flip Active

This flips the surface normal of the selected surface under Machining Region.

Flip Active Normal
