Knife Cutting, 2½ Axis

<< Click to Display Table of Contents >>

Navigation:  MILL Module > Creating 2½ Axis Operations >

Knife Cutting, 2½ Axis

Available in:

Xpress


Standard
checkmark

Expert
checkmark

Professional
checkmark

Premium
checkmark

Knife Cutting, 2 Axis menu icon

Knife Cutting, 2½ Axis

Knife Cutting, 2½ Axis

This method can be used for cutting a variety of different materials using a Drag Knife tool such as fabric, leather and laminates.  A Swivel Angle Limit controls when the tool retracts prior to performing a swivel (i,e, rotation) at corners.

See also: What Tool Types are Supported by this Operation?

tog_minus2½ Axis Knife Cutting Menu Item

The Drag Knife Cutting toolpath method is invoked by selecting the Program tab, clicking on the 2½ Axis button in the Machining Browser and selecting the Drag Knife Cutting operation.

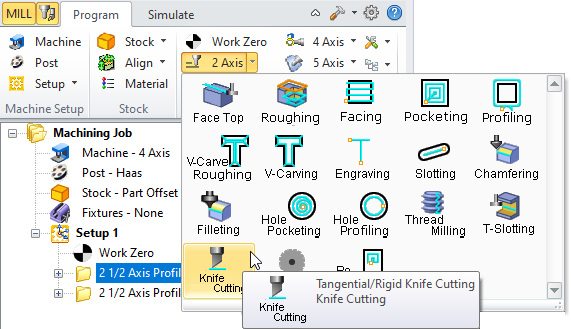

2½ Axis Knife Cut Menu Item

2½ Axis Knife Cut Menu Item
tog_minusDialog Box: 2½ Axis Knife Cutting

This section describes the various parameters that you can set to execute this machining operation. The dialog that is invoked when you choose this toolpath method is shown below:

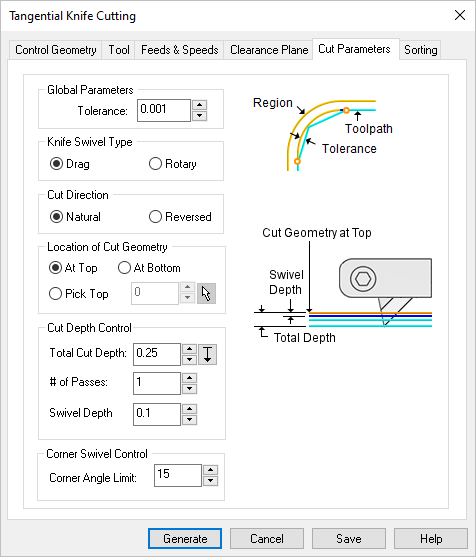

Dialog Box: 2½ Axis Knife Cutting

Dialog Box: 2½ Axis Knife Cutting
