Section Curves

<< Click to Display Table of Contents >>

Navigation:  VisualCAD > The Ribbon Bar > Curve Modeling > Curves >

Section Curves

Create Section CurvesCreates cross-section curves through all solids, surface and mesh geometries on the screen.  The curves will be independent once created.

Reminder: You might want to set a new Layer as the destination for the newly created curves.



tog_minusBasic Procedure



Screen Entry

Command Input

Step 1

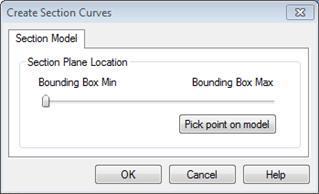

doc_files_image565

Adjust the Bounding Box slider to raise or lower the cutting plane (dynamically shown on the models).  When the cutting plane is positioned correctly, hit OK on the dialog to create the curves.

or...

...Pick a point on the model to determine where the cutting plane is positioned.

(Optional) Enter X, Y, and Z values that define the point of the cutting plane.


Hit the ENTER key when done.

Final

Image-CuttingPlane   Image-CuttingPlane2
