VisualCAD > The Ribbon Bar > Analyze > Analyze

When this function is selected, all geometry is evaluated and important information is reported in a dialog, as shown below:

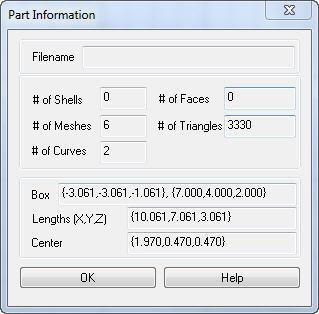

Part Information dialog box

•Filename
Shows the saved location of the current part file. This field will be empty if the part file has not yet been saved.

•Shells
Refers to poly-surface geometry objects.

•Faces
Refers to surface geometry objects.

•Meshes
Refers to a Box, Sphere, Cylinder, Cone Torus, Rectangular Tube, Circular Tube, Extrude, and Revolve.

•Curves
Refers to the number of points, lines, polylines, arcs, circles, and other curves in the part geometry.

•Faces
Refers to the number of surfaces in the part geometry.

•Triangles
Refers to the number of triangles in all mesh geometry.

•Box, Lengths, Center
This information is the same as described in the Bounding Box function and Part Center function.

•OK
Closes the dialog.

•Help
Brings up the on-line Help.

Analyze the Part Information
