When this function is selected, VisualCAD will analyze all existing geometry, will create an internal minimum, volumetric box that contains all that geometry, and will return the following information about the box:
•{minimum X, Y, Z} equals the lower left bottom vertex of the box.
•{maximum X, Y, Z} equals the upper right top vertex of the box.
•{lengths along X, Y, Z} of the box.
This information is oriented to the World Coordinate System (WCS).
|

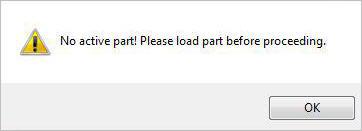

1.Existing geometry is required for the Analyze functions. If none exists, a message is returned.  Analyze Bounding Box Message 2.Geometry objects do not need to be selected since the bounding box will automatically contain all existing objects. 3.All geometry is evaluated, including points, curves, surfaces, meshes, etc. 4.Geometry on all layers, visible or invisible, is contained in the box. |
