Project Curves to a C-Plane

<< Click to Display Table of Contents >>

Navigation:  VisualCAD > The Ribbon Bar > Curve Modeling > Edit Curves >

Project Curves to a C-Plane

Project Curves to a C-PlaneProjects the selected curves to active construction plane. Split an existing curve into two segments at the pick point.



tog_minusCommand Prompts

prompt-Edit-Curves-Chain
tog_minusBasic Procedure



Screen Pick

Command Input

Step 1

Pick curves to be projected with left mouse click selection or dragging a window with left mouse hold.

doc_files_image816





none

Final

Hit right mouse button or hit Enter on keyboard to accept selection.

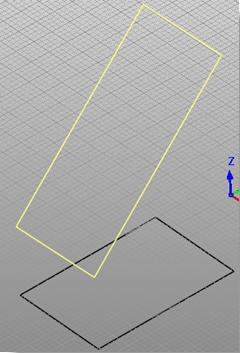

Selected geometry is now projected to the C-Plane coordinate.

doc_files_image817
tog_minusRelated Topics

Edit Curves Pane, Curve Modeling Ribbon Bar
