This is MILL module's principal method of roughing, also known as waterline or constant Z cutting, in which the material is roughed out in horizontal layers. This type of machining is very efficient for removing large volumes of material, and is typically performed with a large tool. Roughing is typically followed by semi-finishing or finishing toolpaths.

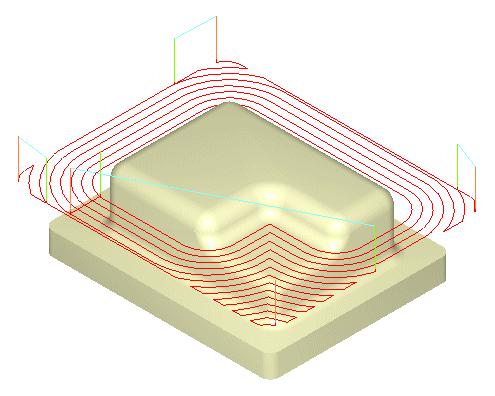

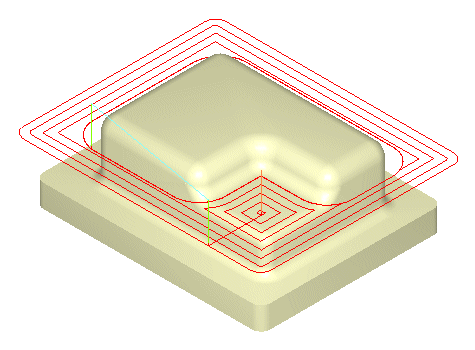

Both part and stock geometry are used to determine the regions that can be safely machined. Three types of cutting patterns are available: Linear (parallel, zigzag lines), Stock Offset (spiral pattern within stock and part), and Part Offset (spiral pattern outside the stock and outside the part). Tool motions are shown for single Z levels in the pictures below.
