Follow Curve Parameters

In this tab, Cut Control parameters can be specified for Turn Follow Curve operations.



tog_minusDialog Box: Follow Curve Parameters tab

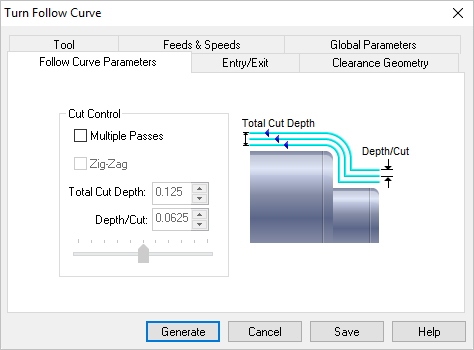

Dialog Box: Follow Curve Parameters tab, Turn Follow Curve

Dialog Box: Follow Curve Parameters tab, Turn Follow Curve
tog_minusCut Control

Final finishing cut can be specified in terms of the total passes of the cutter over the stock.

Cut Control

Allows specifying multiple passes for follow curve operation.

Multiple Passes

Allows user to set the Total Cut Depth and Depth/Cut.  The direction of cut can be either unidirectional or Bi-directional (Zig-Zag)
