Engraving, 2½ Axis
Engraving allows you to select open or closed regions to engrave. In addition to 2D regions, 3D regions can also be chosen. Multiple depths can also be specified for better control of the engraving operation. This method is especially suited for engraving text and logos to part geometry. Unlike the 3 Axis Curve Machining methods, the cutter is not projected to the surfaces below. It merely follows the specified regions.
See also: What Tool Types are Supported by this Operation?
A simple Engraving toolpath on a slotted gear shown below:  2 Axis Engraving |

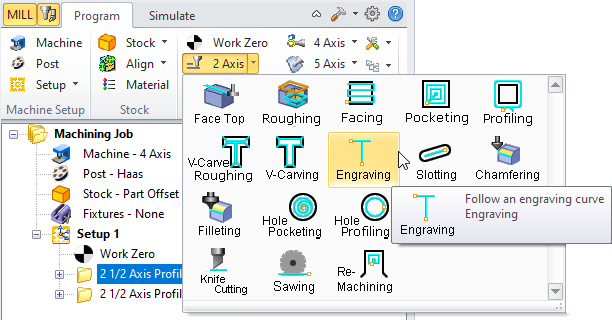

The Engraving toolpath method is invoked by selecting the Program tab, clicking on the 2½ Axis button in the Machining Browser and selecting the Engraving Operation.  2½ Axis Engraving Menu Item |
This section describes the various parameters that you can set to execute this machining operation. The dialog that is invoked when you choose this toolpath method is shown below:  Dialog Box: 2½ Axis Engraving |
