Engage/Retract tab, Plunge Operations, 3 Axis

<< Click to Display Table of Contents >>

Navigation:  MILL Module > Creating 3 Axis Advanced Operations > Plunge Roughing >

Engage/Retract tab, Plunge Operations, 3 Axis

Select the Engage/Retract tab and the following property page is displayed.  This tab is similar for both Plunge Roughing and Plunge Re-Roughing operations.  Here you can set the Approach (D) distance.  Refer to the dialog and options below.



tog_minusSimilar for these 3 Axis Operations:

Plunge Roughing, 3 Axis

Plunge Re-Roughing, 3 Axis
tog_minusDialog Box: Engage/Retract tab

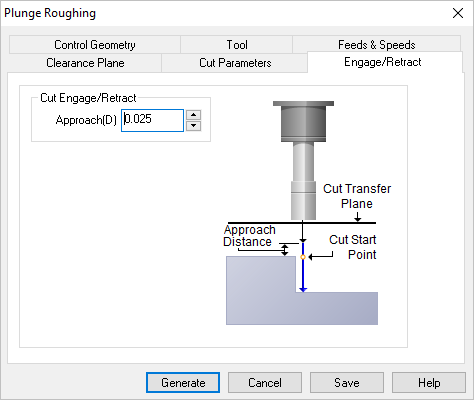

Dialog Box: Engage/Retract tab, Plunge Operations, 3 Axis

Dialog Box: Engage/Retract tab, Plunge Operations, 3 Axis
tog_minusCut Engage/Retract

Enter the desired Approach (D) distance for plunging operations.
