This setting allows Premium configuration users to machine 5 Axis toolpaths in 4 Axis mode.  This provides additional 5 Axis toolpath strategies for those who have a 4 Axis machine tool.

The following 5 Axis strategies are supported in 4 Axis mode:

5 Axis Curve Projection Machining

5 Axis Flow Curve Machining

5 Axis Between 2 Curves Machining

5 Axis Surface Normal Machining

5 Axis Swarf Machining

This example shown is a section of a complex wooden handrail.

4 Axis Mode Machining

Select from the following:

5 Axis

The toolpath will be calculated in normal 5 Axis mode.  Your Machine Definition should be set to 5 Axis.

4 Axis

The toolpath will be calculated in 4 Axis mode.  Your Machine Definition should be set to 4 Axis.

Global Cut Parameters

This section of the Cut Parameters tab allows you to set the following parameters:

Cut Tolerance

This is allowable deviations (tolerances) from the actual part geometry plus the Stock layer (if any).

How to Increase Tool Path Accuracy Tolerances play a vital role in both design engineering and digital manufacturing.  In design, the goal is to allow the broadest tolerance range possible while meeting your design specifications. This is because, generally speaking, there is a direct correlation between tighter tolerances and higher manufacturing costs. Read the full article...

Max Angle Change

his is the maximum allowable angle change between two toolpath points.

Max Distance Change

This is the maximum allowable distance change between two toolpath points.

Stock

The thickness of the layer that will remain on top of the part after the toolpath is complete. Roughing operations generally leave a thin layer of stock, but for finishing operations this value is zero.

This section allows you to define the type of cut that the tool will follow.

ZigZag

The cutter traverses back and from along the cuts.

ZigZag

Zig

The cutter traverses the cuts in a single direction.

Zig

Cut Direction

The Cut Direction can be set to Climb or Conventional. This is available only when Cut Traversal is set to Zig.

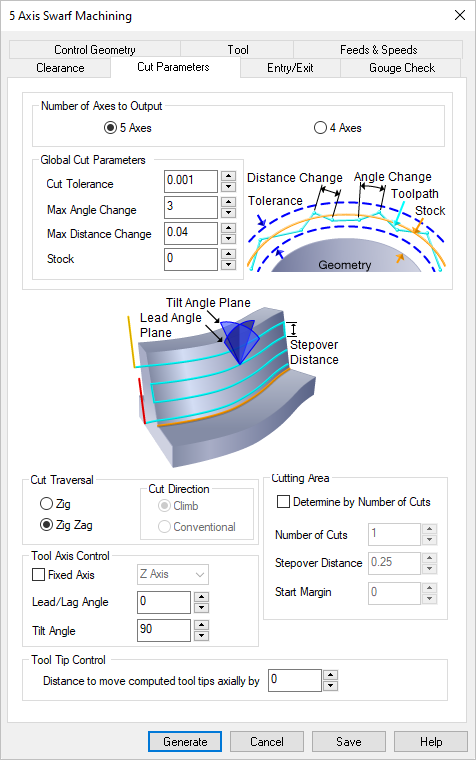

Cutting Area Parameters, Swarf, 5 Axis

This section of the Cut Parameters tab affects the cutting area of the Swarf operation.

Determine by Number of Cuts

Check this box to activate the following parameters:

Number of Cuts

This allows you to set the total number of cuts. The distance between the cuts is defined using the Stepover Distance field.  Only active when Determine by Number of Cuts is checked.

Stepover Distance

This allows you to define the spacing between the cuts. This is specified as a distance.  Only active when Determine by Number of Cuts is checked.

Start Margin

This is the allowance or offset distance from the floor surface.  Only active when Determine by Number of Cuts is checked.

Fixed Axis

For Tool Axis Control, check this box to control the tool axis during cut motions and then select either X Axis, Y Axis or Z Axis from the menu provided.  This allows better control of the tool axis in tight spaces for simultaneous 5 Axis machining.

Rotation Angle

With Fixed Axis is checked, you can use this option to further control the tool axis by providing a maximum Rotation Angle.

Lead/Lag Angle

When Fixed Axis is not checked, this option controls the tool axis angle along the direction of travel.

Tilt Angle

This defines the direction normal to the direction of travel.

For additional Tool Tip Control, you can specify a Distance to move computed tool tips axially.  Specifying a value would move the computed toolpath axially by this specified value.
