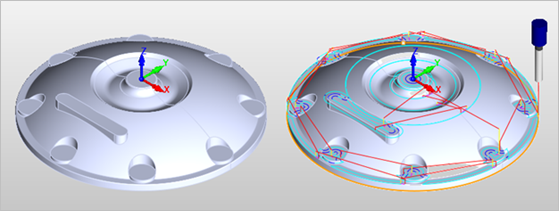

Clear Flats Machining, 3 Axis
This method machines Flat Top areas only. This is typically used to re-machine areas that remain un machined after a Horizontal Roughing or Horizontal Finishing toolpath.
See also: What Tool Types are Supported by this Operation?
 Clear Flats Machining, 3 Axis |

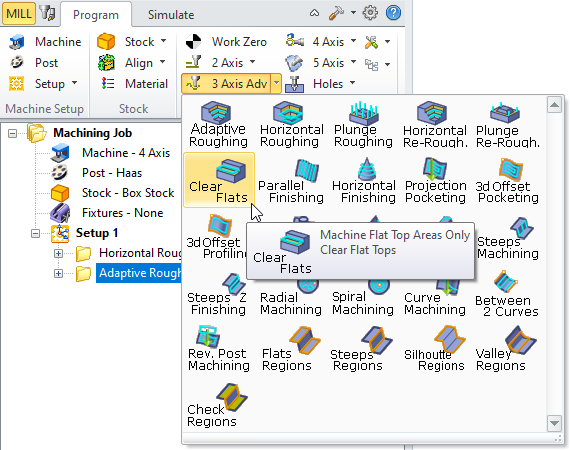

The Clear Flats toolpath method is invoked by selecting the Program tab, clicking on the 3 Axis Adv button in the Machining Browser and selecting the Clear Flats Operation.  Clear Flats Machining, 3 Axis Menu Item |

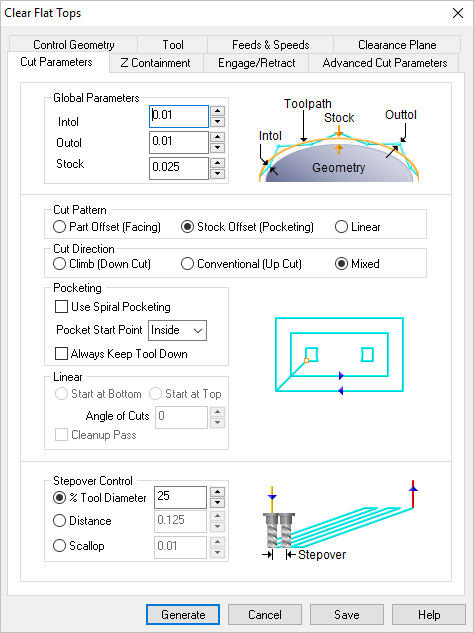

The dialog that is invoked when you choose this toolpath method is shown below:  Dialog Box: Clear Flats Machining, 3 Axis |
