Profiling, 4 Axis
This method is similar to 2½ Axis Profiling. This method machines open and closed regions by tracing along one side of their contours. You can define offsets so that the tool makes multiple passes relative to the regions. Profiling can be used as a finishing operation after a Pocketing or Facing toolpath, or it can be used alone.
See also: What Tool Types are Supported by this Operation?
The machining regions can be selected from a cylindrical surface.  4 Axis Continuous Profiling |

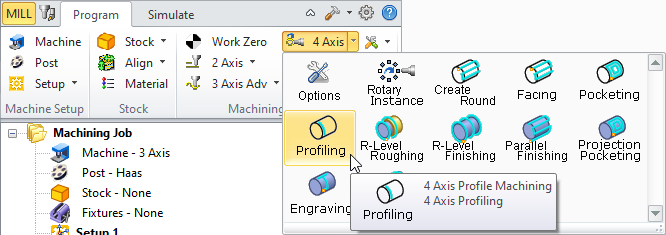

The Profiling toolpath method is invoked by selecting the Program tab, clicking on the 4 Axis button in the Machining Browser and selecting the Profiling Operation.  4 Axis Profiling Menu Item |

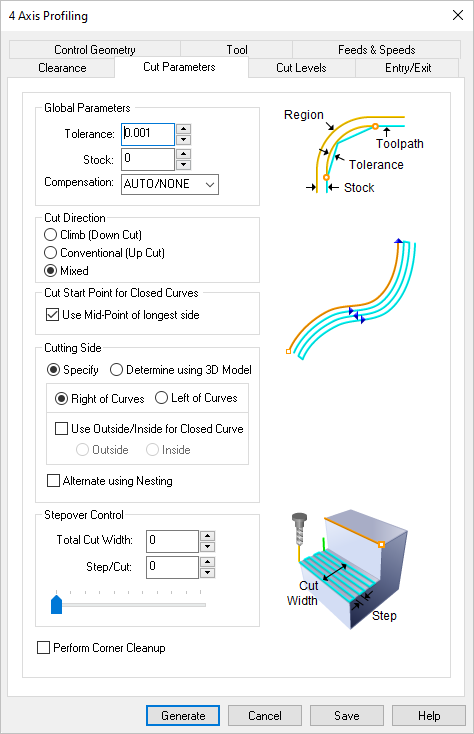

The dialog that is invoked when you choose this toolpath method is shown below:  Dialog Box: 4 Axis Profiling Operation |
