Available in:
|
Xpress
|
Standard
|
Expert
|
Professional
|
Premium
|
4 axis Machining Operations Options allows you to set 4 axis options.

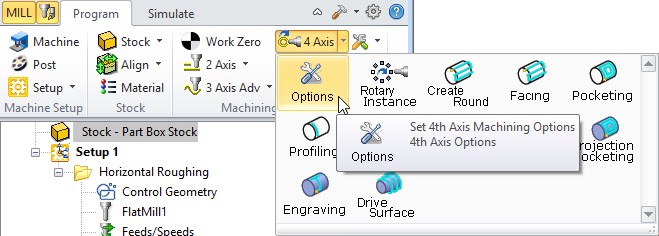

The 4 Axis Options are invoked by selecting the Program tab, clicking on the 4 Axis button in the Machining Browser and selecting Options.
 4 Axis Options Menu Item |
This brings up the 4 Axis machining operations options dialog.

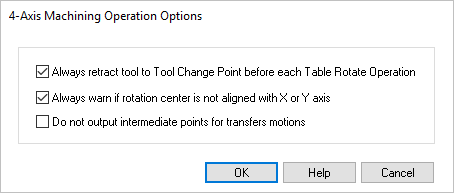

 Dialog Box: 4 Axis Machining Operations Options
When you select this option, MILL module will retract the tool to the tool change point. The tool change point is specified under Machine Tool Setup located under the Program tab in the Machining Browser.
 Retract to Tool change point before each table rotate is output in the posted code only when a non-zero value for X Y Z coordinates is specified under Tool change point in the Machine Setup dialog.
Refer to Machine Setup
|
|
Check this box to be warned if the Machine Zero and the rotary center are not set at the same coordinate point. You can override this warning by un-checking this option.
|
When this option is checked, and Cut Transfer is set to Rapid, intermediate points will not be output during transfer motions in 4 Axis continuous toolpaths. This allows the machine tool to rotate the part using an arc motion rather than using the linearized transfer motions that are computed by the CAM system.
|
|
